Create clean, consistent kitchen elevations quickly with this complete set of dynamic base cabinet elevation CAD blocks. Designed to coordinate directly with plan layouts, these blocks provide accurate front views for professional presentation and construction documentation.
Includes the full range of standard base cabinet widths plus sink bases, corner solutions, and fillers to match real-world installations.
Dynamic visibility controls allow fast size selection, while rotation and flip parameters make positioning effortless.

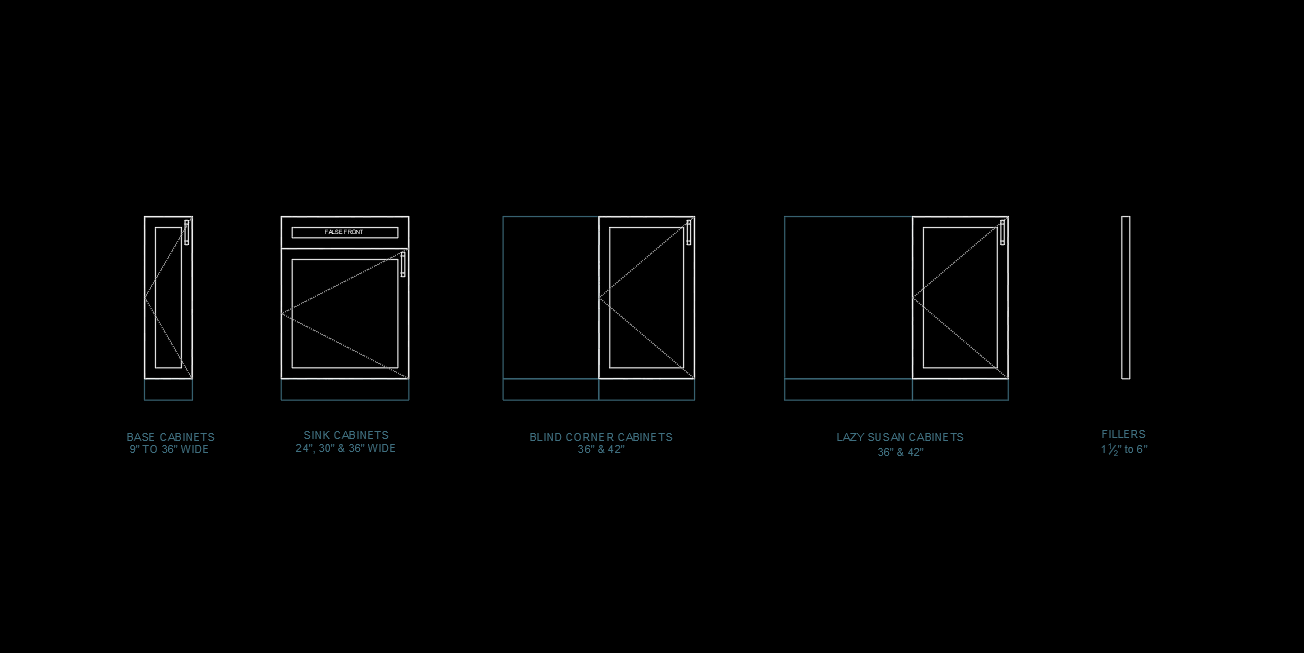

Included cabinet types
Standard base cabinets (9" to 36" widths)
Sink base cabinets (24", 30", 36")
Blind corner cabinets (36", 42")
Lazy Susan corner cabinets (36", 42")
Fillers (1.5" to 6")
Features
Dynamic size selection
Easy orientation control
Consistent elevation graphics
Professional drafting standards
Best for
Interior elevations, millwork detailing, permit drawings, and presentation sets.
