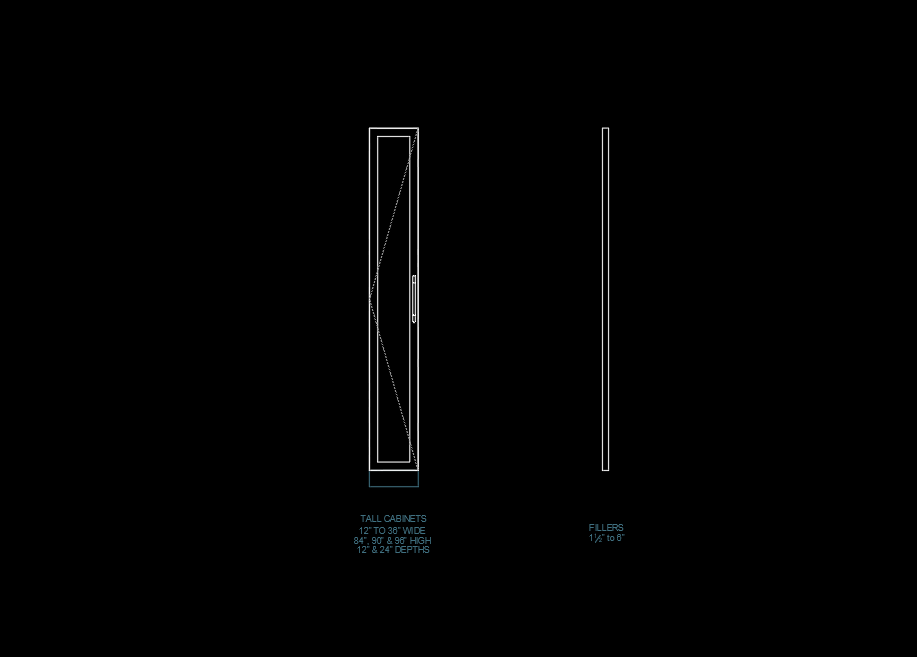

A complete dynamic CAD block set for tall cabinet elevations, designed for professional kitchen documentation and presentation drawings.
Includes a wide range of cabinet widths and heights plus corner units and fillers for accurate installation detailing.
Visibility controls and orientation parameters allow quick selection and placement, reducing repetitive drafting.
Included cabinet types
Standard tall cabinets (12" to 36" widths)
Fillers (1.5" to 6")
Height options
84"
90"
96"
Features
Dynamic size and height selection
Easy placement and orientation
Consistent elevation graphics
Professional drafting standards
Best for
Interior elevations, millwork detailing, and construction drawing sets.
