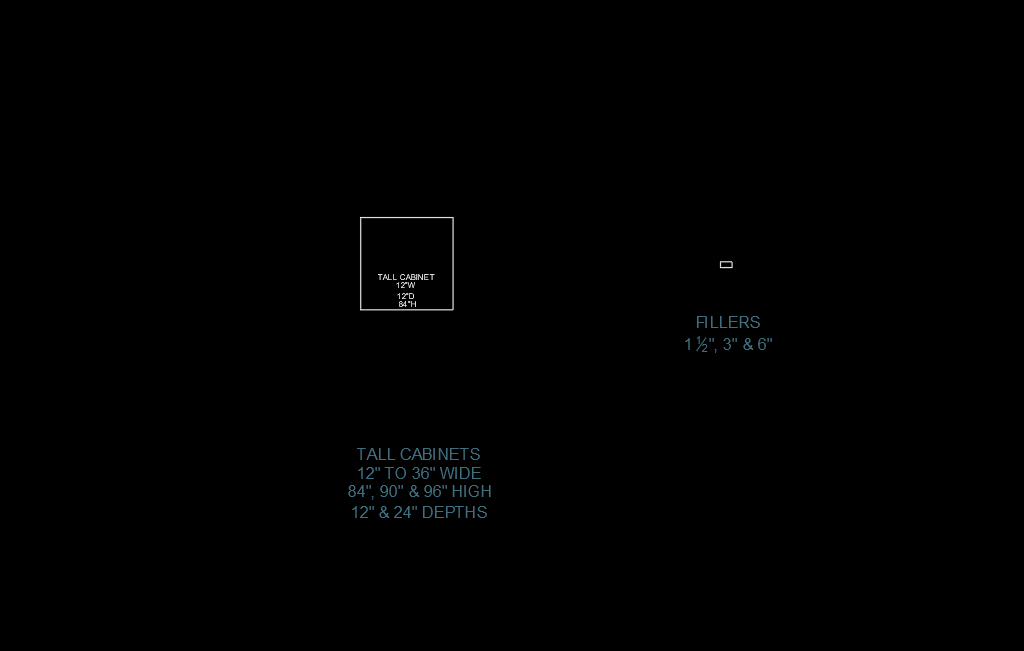

Design full-height kitchen storage layouts quickly with this comprehensive set of dynamic tall cabinet CAD blocks in plan view. Includes a wide range of cabinet widths, corner units, and fillers for precise, realistic layouts.
Multiple height options support full-height installations and varied ceiling conditions.
Dynamic visibility and orientation controls allow fast adjustments directly within your drawing.
Included cabinet types
Standard tall cabinets (12" to 36" widths)
Fillers (1.5" to 6")
Height options
84"
90"
96"
Features
Dynamic configuration
Rotation and flip controls
Clean, consistent plan graphics
Designed for real-world installations
Best for
Pantry layouts, appliance towers, and full-height storage planning.
