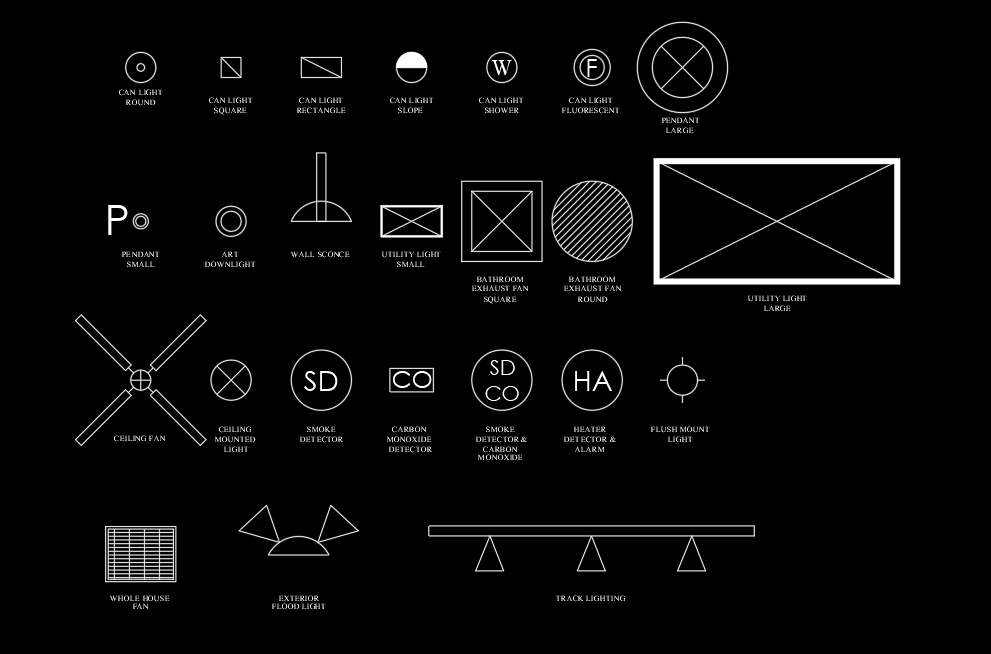

Collection of 24 metric lighting plan symbols contained within a single CAD block. The block features a drop-down menu to select from all included symbols, with each symbol capable of independent rotation. Included symbols are: can lights (round, square, rectangular, sloped ceiling, shower, and fluorescent), pendants (large and small), art downlight, wall sconce, utility lights (large and small), bathroom exhaust fans (square and round), ceiling fan, ceiling-mounted light, flush-mounted light, smoke detector, carbon monoxide detector, combined smoke and carbon monoxide detector, and heater detector/alarm.
Collection of 24 metric lighting plan symbols contained within a single CAD block. The block features a drop-down menu to select from all included symbols, with each symbol capable of independent rotation. Included symbols are: can lights (round, square, rectangular, sloped ceiling, shower, and fluorescent), pendants (large and small), art downlight, wall sconce, utility lights (large and small), bathroom exhaust fans (square and round), ceiling fan, ceiling-mounted light, flush-mounted light, smoke detector, carbon monoxide detector, combined smoke and carbon monoxide detector, and heater detector/alarm.
